PIECE BY PIECE. OR BY THE COIL.

For perfect cutting results, the rule material is of utmost importance. What are your requirements for the cutting die? Which material are you cutting? Marbach uses different types of rule depending on your application.

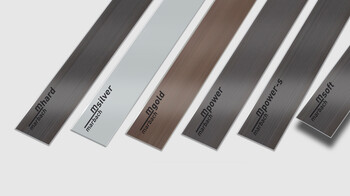

A comprehensive portfolio.

For any objective. For every need.

Small or large runs. It doesn't matter what is being cut: coated or uncoated material. Plastic. Foam. For every application the matching rule. We would be glad to advise you. Entirely individual. From the start. For the best performance.

You can find our cutting rule by the coil and in meter lenghts in our web shop.

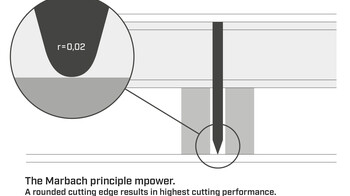

mpower.

The original.

One standard. Developed by us. The mpower cutting rule. The reason: a rounded cutting edge. Absorbing tolerances. Eliminating angel hair. Almost immune to over pressure. For the shortest make-ready times. For the highest cutting performance. From the first to the last sheet.

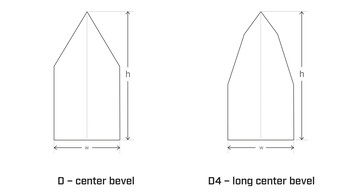

Cutting edge geometries.

Diverse.

D – center bevel – The standard for cutting paperboard. Also available as side bevel.

D4 – long center bevel  For thick material. The standard for corrugated board. Also available as side bevel.

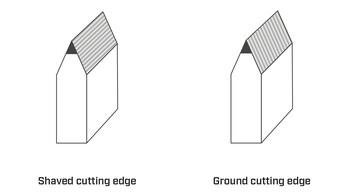

Cutting edge.

Shaved or ground cutting edge.

Shaved cutting edge – Precisely processed. Reliable over many years. The standard.

Ground cutting edge – Precise cutting edges. Reduced cutting pressure. Penetrates easily through the material

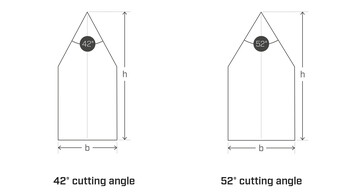

Cutting angle.

42° or 52°.

42° cutting angle – The cutting rule penetrates easily into the material. Lower cutting pressure is needed. The standard in America.

52° cutting angle – The cutting rule is very robust. It has a long life span. The standard in Europe and Asia.

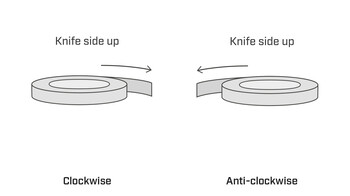

Winding direction.

Winded the right way.

Clockwise – The correct winding direction. For your bending machine. And your application. Clockwise.

Anti-clockwise – The correct winding direction. For your bending machine. And your application. Anti-clockwise
